Circular Progress Bar Using HTML and CSS

Circular Progress Bar Using Only HTML and CSS

In this article, I am going to show you how to create an animated circular progress bar using only HTML CSS and BoostApp programming code. I have designed many more types of animated progress bars before but this design has been designed in a completely modern way.

Animated circular Progress Bar is a type of statistical design used in a variety of websites. It is mainly used to indicate the percentage of one's qualification in a portfolio website or personal website. It is fully animated, that is, under normal conditions, it has zero percent then it will gradually reach the pre-determined percentage. Different colors have been used to denote percentages.

See the Pen Untitled by Code Media (@codemediaweb) on CodePen.

Animated Circular progress bar using Html and CSS

I used Html,  CSS, and bootstrap programming code to make it. In the case of this circular progress bar, you can pre-determine the percentage as needed. This means that you can pre-determine the percentage of progress this animation will stop. In this case, I have basically made a circle of three signs of progress and used different colors for each of them.


Below I have shown in full step by step how I have created this progress bar and which programming code I have used to create any element. Below the article is a download button where you can download the required source code by clicking.

Step 1: Create the structure of the progress bar


<!--Bootstrap Cdn link-->

<link rel="stylesheet" href="https://cdn.jsdelivr.net/npm/bootstrap@4.6.0/dist/css/bootstrap.min.css" integrity="sha384-B0vP5xmATw1+K9KRQjQERJvTumQW0nPEzvF6L/Z6nronJ3oUOFUFpCjEUQouq2+l" crossorigin="anonymous">


<div class="container">
        <div class="row">
            <div class="col-md-3 col-sm-6">
                <div class="progress blue">
                    <span class="progress-left">
                        <span class="progress-bar"></span>
                    </span>
                    <span class="progress-right">
                        <span class="progress-bar"></span>
                    </span>
                    <div class="progress-value">90%</div>
                </div>
            </div>
            <div class="col-md-3 col-sm-6">
                <div class="progress yellow">
                    <span class="progress-left">
                        <span class="progress-bar"></span>
                    </span>
                    <span class="progress-right">
                        <span class="progress-bar"></span>
                    </span>
                    <div class="progress-value">75%</div>
                </div>
            </div>
            <div class="col-md-3 col-sm-6">
                <div class="progress pink">
                    <span class="progress-left">
                        <span class="progress-bar"></span>
                    </span>
                    <span class="progress-right">
                        <span class="progress-bar"></span>
                    </span>
                    <div class="progress-value">60%</div>
                </div>
            </div>
        </div>
    </div>


body{
    background-color: #333;
    margin: 10%;
    margin-left: 30%;

}

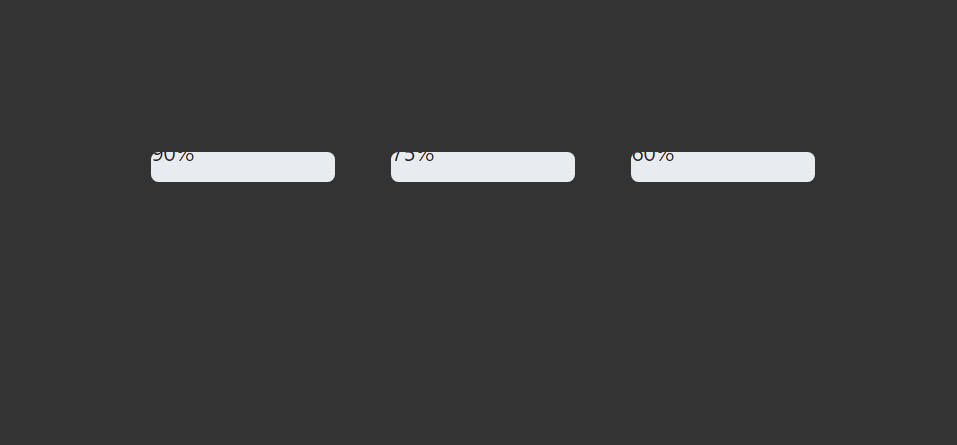

Result:

Step 2: Design round shape with CSS code


.progress{
    background: none;
    margin: 0 auto;
    box-shadow: none;
    width: 150px;
    height: 150px;
    line-height: 150px;
    position: relative;
}
.progress:after{
    content: "";
    border-radius: 50%;
    border: 15px solid #f2f5f5;
    position: absolute;
    width: 100%;
    height: 100%;
    top: 0;
    left: 0;
}
.progress > span{
    position: absolute;
    top: 0;
    z-index: 1;
    width: 50%;
    height: 100%;
    overflow: hidden;
}
.progress .progress-left{
    left: 0;
}
.progress .progress-bar{
    border-width: 15px;
    border-style: solid;
    position: absolute;
    width: 100%;
    height: 100%;
    background: none;
    top: 0;
}
.progress .progress-left .progress-bar{
    left: 100%;
    border-top-right-radius: 80px;
    border-bottom-right-radius: 80px;
    border-left: 0;
    -webkit-transform-origin: center left;
    transform-origin: center left;
}
.progress .progress-right{
    right: 0;
}
.progress .progress-right .progress-bar{
    left: -100%;
    -webkit-transform-origin: center right;
    transform-origin: center right;
    border-top-left-radius: 80px;
    border-bottom-left-radius: 80px;
    border-right: 0;
    animation: loading-1 1.8s linear forwards;
}
.progress .progress-value{
    font-size: 24px;
    color: rgb(250245245);
    text-align: center;
    width: 100%;
    height: 100%;
    position: absolute;
}

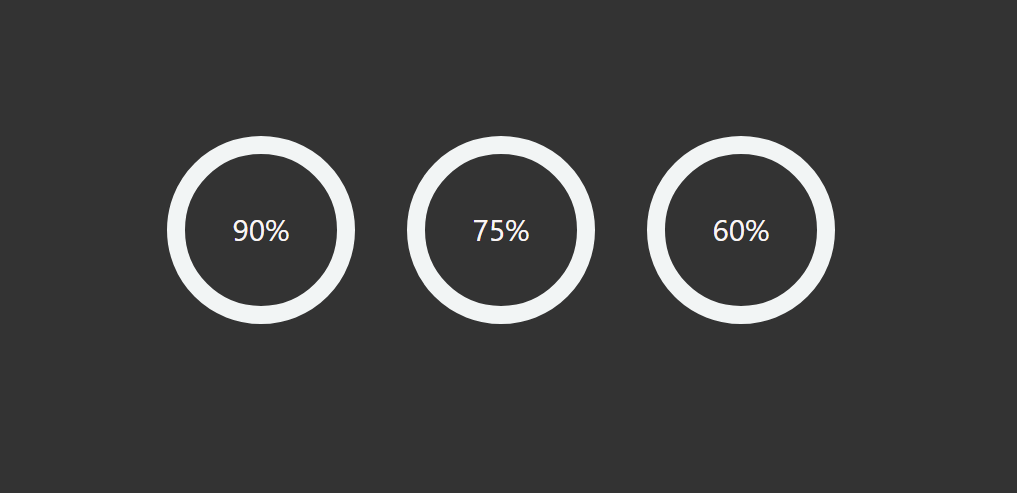

Result:

Step 3: Add loading animations in the progress bar


@keyframes loading-1{
    0%{
        -webkit-transform: rotate(0deg);
        transform: rotate(0deg);
    }
    100%{
        -webkit-transform: rotate(180deg);
        transform: rotate(180deg);
    }
}
@keyframes loading-2{
    0%{
        -webkit-transform: rotate(0deg);
        transform: rotate(0deg);
    }
    100%{
        -webkit-transform: rotate(144deg);
        transform: rotate(144deg);
    }
}
@keyframes loading-3{
    0%{
        -webkit-transform: rotate(0deg);
        transform: rotate(0deg);
    }
    100%{
        -webkit-transform: rotate(90deg);
        transform: rotate(90deg);
    }
}
@keyframes loading-4{
    0%{
        -webkit-transform: rotate(0deg);
        transform: rotate(0deg);
    }
    100%{
        -webkit-transform: rotate(36deg);
        transform: rotate(36deg);
    }
}
@keyframes loading-5{
    0%{
        -webkit-transform: rotate(0deg);
        transform: rotate(0deg);
    }
    100%{
        -webkit-transform: rotate(126deg);
        transform: rotate(126deg);
    }
}

Result:


Step 4: Add a different color to make the loading animation clearer


.progress.blue .progress-bar{
    border-color: #26abfd;
}
.progress.blue .progress-left .progress-bar{
    animation: loading-2 1.5s linear forwards 1.8s;
}
.progress.yellow .progress-bar{
    border-color: #fdc426;
}
.progress.yellow .progress-left .progress-bar{
    animation: loading-3 1s linear forwards 1.8s;
}
.progress.pink .progress-bar{
    border-color: #f83754;
}
.progress.pink .progress-left .progress-bar{
    animation: loading-4 0.4s linear forwards 1.8s;
}

Result:


Hopefully from this article, you have learned how to make it. If there is any difficulty, you can let me know by commenting.

Step by Step Tutorial: Click Here
